ScanReady Microplate Photometer

  • Favorite
Hangzhou Lifereal Biotechnology Co., Ltd.

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Model:P-800
  • Certification:CE
  • Net Weight:8.5KG
  • Brand Name:Lifereal
  • Place of Origin:china
  • Warranty:1 year

Description

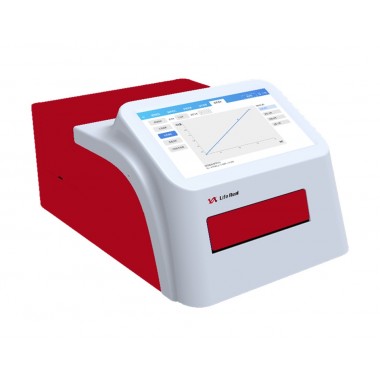

The ScanReady P-800 measures the absorbance with the intuitive touch screen. It provides reliable and qualified results by the high-quality photometer through the built-in powerful software. By the big 7' colorful touch screen, the user enjoys the intuitive operation on the system. And the friendly visual user interface with the logical workflow ensures the excellent usability, making it ideal for qualitative and quantitive ELISA applications in the research laboratories.

96/384 Microplate


Features:

· Wide wavelength range of 340nm to 850nm
· Fast reading of both 96-well and 384-well microplates
· Shaking and incubation from RT+4℃ to 50℃ for temperature critical assays
· Big 7' colorful touch screen for intuitive operation
· Easy but powerful software with its logical workflow for universal usability
· High-quality photodetector from Hamamastu
· USB port for easy data transfer


Scientific design of optical system to ensure the accurate measuring results

The optimum design and the verification of the optical path and circuit, meet the wide detection range from 340-850 mm wavelength.
The detection results of each band are accurate and stable, applicable to a variety of rigorous applications.

 8 filters wheel
The stable and reliable performance comes from the built-in self-diagnostic program of the machine.
In the start-up stage, the built-in self-diagnostic program detects the position of the microplate, and the stability of optical components.



Large colorful LCD touch screen for easy use
7 inch colorful capacitive touch screen, can display more detection data.
The large size icons realizes easy touch operation and reduces disoperation as much as possible.
There are three shortcuts to start the customized protocols with one-button start.


Powerful internal software
Functions include:

  • Main: protocol, plate format, measurement, shaking, incubation
  • Process: plate layout, preprocessing, calculation, interpretation, quality control
  • Results: raw data, calculated results, calibration data, quality control, results in list format
  • Settings: system, filters, printer, startup.

Working principle (XY axis scan)



Applications:

▷ Immunoassays (ELISA)
▷ Protein assays
▷ Endotoxins
▷ Cytotoxicity and proliferation assays
▷ Enzyme assays
▷ Growth curves



Specifications:

ModelP-800
Plate Type96-well and 384-well plates,max height:15.3mm
Light SourceQuartz-halogen lamp
Detector TypePhoto detector
Wavelength SelectionFilters
Wavelength Range340nm to 850nm
Filters8-position filter wheel;
Three filters installed: 405nm,450nm,and 620nm.
Optional filters (nm)

340,375,414,492,520,530,540,550,560,
570,595,630,650,690,740,750,820

Linearity0-3 Abs,-/+2% at 405nm,96-well plate
Read-out Range0 to 6Abs
Resolution0.001Abs
Accuracy士1% (0-3 Abs) or 士0.003 Abs,whichever is greater at 405nm

PrecisionCV = 0.2%  (0.3-3 Abs) at 405nm
ShakingLinear shaking with three modes :slow,medium,fast
Measurement Speed7 seconds,96-well plate,fast mode
13 seconds,96-well plate,normal mode
13 seconds,384-well plate,fast mode
34 seconds,384-well plate,normal mode
Display7' colorful touch screen
InterfaceUSB port for data transfer,USB port for printer
Size( LXWXH )410x290x210mm
Power supply100-240V(50/60HZ)
